 IEEE 1101.10 and PICMG 2.0 Complint |
 |
| Wide selection of ejectors |
| Full EMI shielding,garter spring |
| 6U x 4HP standard faceplate |
| Hot swap, ESD and polarity keying complatible |
| Custom punched and screened options available |
| CPCI-6U4 Series was introduced to meet the requirements of IEEE 1101.10 and PICMG 2.0 CompactPCI specifications. |
| The CPCI-6U4 provides a completely assembled front panel solution for the demanding peripheral designer looking to meet the stringent requirements of CompactPCI. |
| Full EMI shielding, PCB retainers and ejector systems are supplied ready for assembly with 6U PCBs. |
| There are no special tools or fixtures required for installation. |
| Material Specifications: |
| Face plate: Aluminum |
| EMI shielding: Beryllium Copper Garter Spring |
| Ejectors: Next pages |
| Application Notes: |
| Custom punched and screened panels are available. |
 |
Cabinet Rack

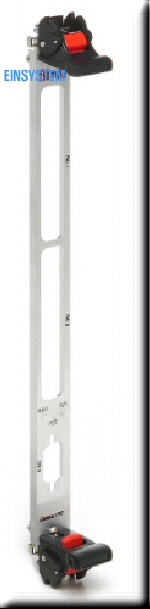

Complete 6U,4HP Faceplate
